Landscape · L-DRQBG

Irrigation Valve Box Installation Detail

Materials

Steel Stainless Steel Brick

Elements

Stairs Waterproofing / Flashing

Connections

Bolted Connection

About this detail

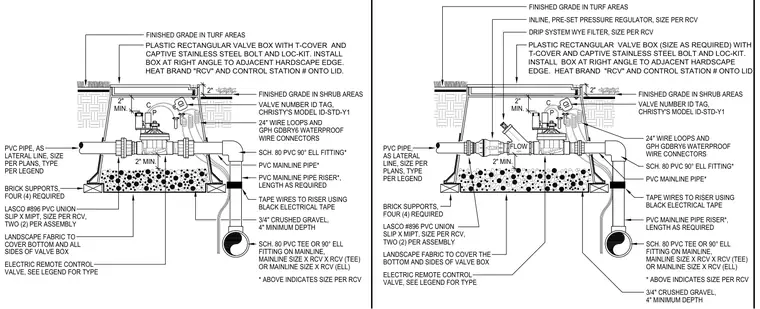

An underground electric remote control valve assembly is housed within a plastic rectangular valve box featuring a T-cover and captive stainless steel bolt with a loc-kit. The box rests on four brick supports over a minimum four-inch depth of three-quarters-inch crushed gravel, wrapped entirely in landscape fabric. PVC mainline pipe connects to the valve using Schedule 80 fittings and PVC unions, with lateral lines branching off as specified by the plan. Waterproof wire connectors secure the electrical connections with twenty-four-inch wire loops, and an ID tag is affixed inside the box.

2" 2" MIN. FINISHED GRADE IN SHRUB AREAS 2" BRICK SUPPORTS, FOUR (4) REQUIRED LASCO #896 PVC UNION SLIP X MIPT, SIZE PER RCV, MIN. P C PVC MAINLINE PIPE RISER*, LENGTH AS REQUIRED 3/4" CRUSHED GRAVEL, 4" MINIMUM DEPTH SCH. 80 PVC 90° ELL FITTING* LANDSCAPE FABRIC TO COVER BOTTOM AND ALL SIDES OF VALVE BOX ELECTRIC REMOTE CONTROL VALVE, SEE LEGEND FOR TYPE TAPE WIRES TO RISER USING BLACK ELECTRICAL TAPE FINISHED GRADE IN TURF AREAS LATERAL LINE, SIZE PER PLANS, TYPE PVC PIPE, AS 24" WIRE LOOPS AND GPH GDBRY6 WATERPROOF WIRE CONNECTORS PVC MAINLINE PIPE* SCH. 80 PVC TEE OR 90° ELL FITTING ON MAINLINE, ID VALVE NUMBER ID TAG, CHRISTY'S MODEL ID-STD-Y1 PER LEGEND TWO (2) PER ASSEMBLY MAINLINE SIZE X RCV X RCV (TEE) OR MAINLINE SIZE X RCV (ELL) * ABOVE INDICATES SIZE PER RCV PLASTIC RECTANGULAR VALVE BOX WITH T-COVER AND CAPTIVE STAINLESS STEEL BOLT AND LOC-KIT. INSTALL BOX AT RIGHT ANGLE TO ADJACENT HARDSCAPE EDGE. HEAT BRAND "RCV" AND CONTROL STATION # ONTO LID. 2" FINISHED GRADE IN SHRUB AREAS 2" 3/4" CRUSHED GRAVEL, 4" MINIMUM DEPTH BRICK SUPPORTS, FOUR (4) REQUIRED LINE, SIZE PER PLANS, TYPE MIN. P C AS LATERAL PER LEGEND FLOW DRIP SYSTEM WYE FILTER, SIZE PER RCV INLINE, PRE-SET PRESSURE REGULATOR, SIZE PER RCV FINISHED GRADE IN TURF AREAS 2" MIN. ELECTRIC REMOTE CONTROL VALVE, SEE LEGEND FOR TYPE LANDSCAPE FABRIC TO COVER THE BOTTOM AND SIDES OF VALVE BOX PVC PIPE, TAPE WIRES TO RISER USING BLACK ELECTRICAL TAPE 24" WIRE LOOPS AND GPH GDBRY6 WATERPROOF WIRE CONNECTORS ID VALVE NUMBER ID TAG, CHRISTY'S MODEL ID-STD-Y1 SCH. 80 PVC TEE OR 90° ELL FITTING ON MAINLINE, MAINLINE SIZE X RCV X RCV (TEE) OR MAINLINE SIZE X RCV (ELL) * ABOVE INDICATES SIZE PER RCV SCH. 80 PVC 90° ELL FITTING* PVC MAINLINE PIPE* PVC MAINLINE PIPE RISER*, LENGTH AS REQUIRED LASCO #896 PVC UNION SLIP X MIPT, SIZE PER RCV, TWO (2) PER ASSEMBLY PLASTIC RECTANGULAR VALVE BOX (SIZE AS REQUIRED) WITH T-COVER AND CAPTIVE STAINLESS STEEL BOLT AND LOC-KIT. INSTALL BOX AT RIGHT ANGLE TO ADJACENT HARDSCAPE EDGE. HEAT BRAND "RCV" AND CONTROL STATION # ONTO LID.
