Landscape · L-DQFG3

Redwood Header

Materials

Elements

About this detail

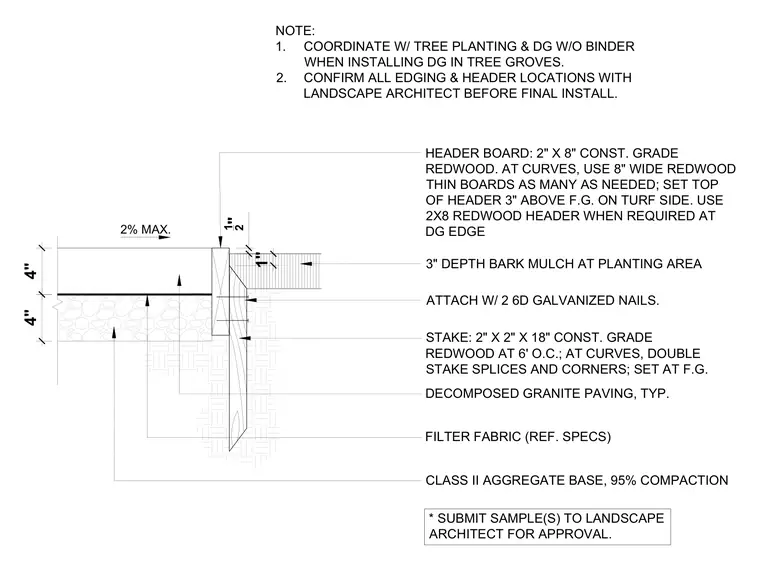

A two-inch by eight-inch construction grade redwood header board separates decomposed granite paving from a planting area with a three-inch depth of bark mulch. The header board is supported by two-inch by two-inch by eighteen-inch construction grade redwood stakes spaced at six feet on center, with double staking applied at curves, splices, and corners. The header is attached using two six-penny galvanized nails. The decomposed granite paving features a four-inch layer over filter fabric and a four-inch class two aggregate base compacted to ninety-five percent.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
