Exterior concrete stairs feature a rounded tread nose edge with a one-half inch radius. Troweled grooves are installed near the leading edge of each tread, spanning the entire width and length of the grooved area. A contrasting black concrete stain is applied in two coats within the grooved area. Grooves are required at each tread of all exterior stairs.

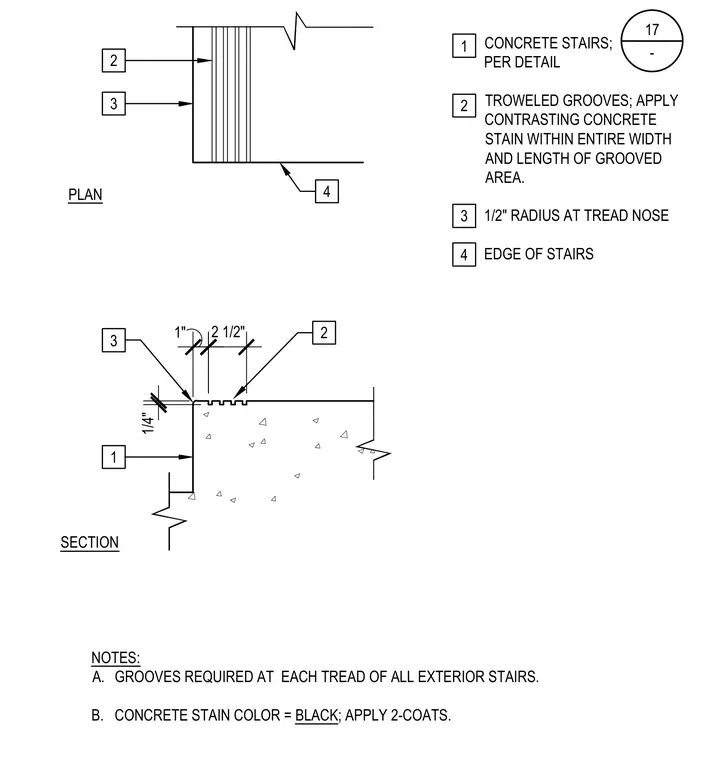

2 1/2" 1" 2 4 3 CONCRETE STAIRS; PER DETAIL TROWELED GROOVES; APPLY CONTRASTING CONCRETE STAIN WITHIN ENTIRE WIDTH AND LENGTH OF GROOVED AREA. 1/2" RADIUS AT TREAD NOSE EDGE OF STAIRS NOTES: A. GROOVES REQUIRED AT EACH TREAD OF ALL EXTERIOR STAIRS. B. CONCRETE STAIN COLOR = BLACK; APPLY 2-COATS. SECTION PLAN 17 - 1/4" 3 1 2 3 4 1 2
