Landscape · L-DPJYM

Root Barrier

Elements

About this detail

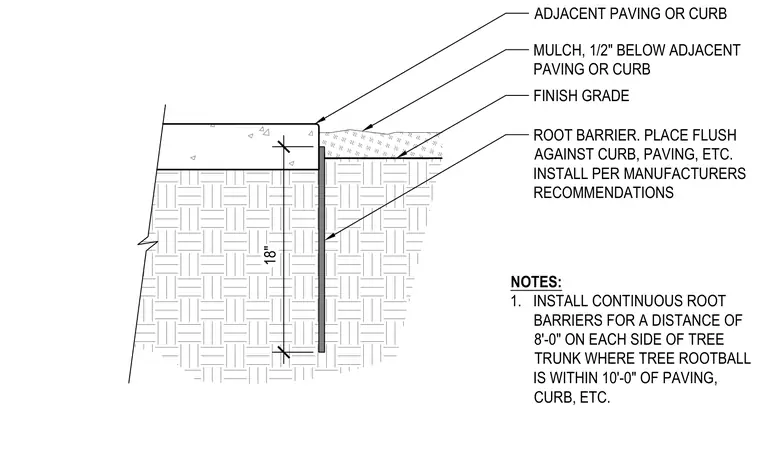

An eighteen-inch deep root barrier is installed vertically and flush against the edge of adjacent paving or a concrete curb. Finish grade sits over the subgrade with mulch placed one-half inch below the top of the adjacent paving or curb. Continuous root barriers must extend for a distance of eight feet on each side of a tree trunk whenever the tree rootball is located within ten feet of paving or a curb, installed per the manufacturer recommendations.
