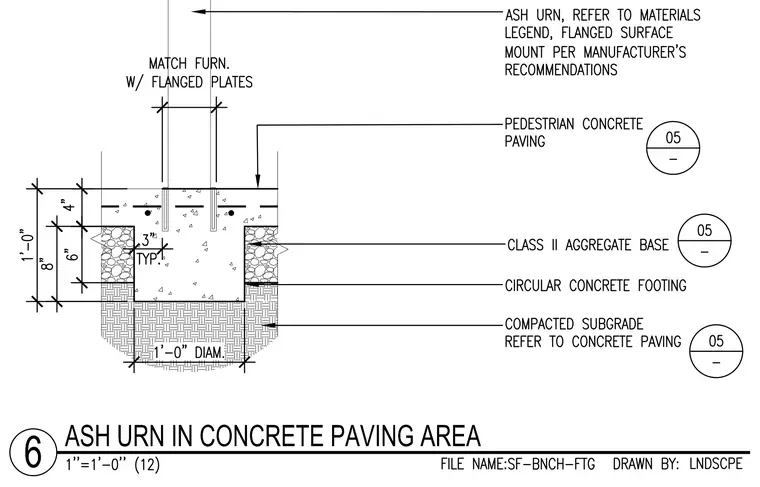

An ash urn with flanged plates is surface-mounted to pedestrian concrete paving per the manufacturer's recommendations. The four-inch concrete slab rests on a six-inch Class II aggregate base over a circular concrete footing with a diameter of one foot. The footing bears on compacted subgrade. Overall thickness of the concrete and aggregate layers is one foot.
