Flow Sensor Installation Detail

Materials

Steel Stainless Steel Brick

Elements

Waterproofing / Flashing Roof / Floor Openings

Connections

Bolted Connection

About this detail

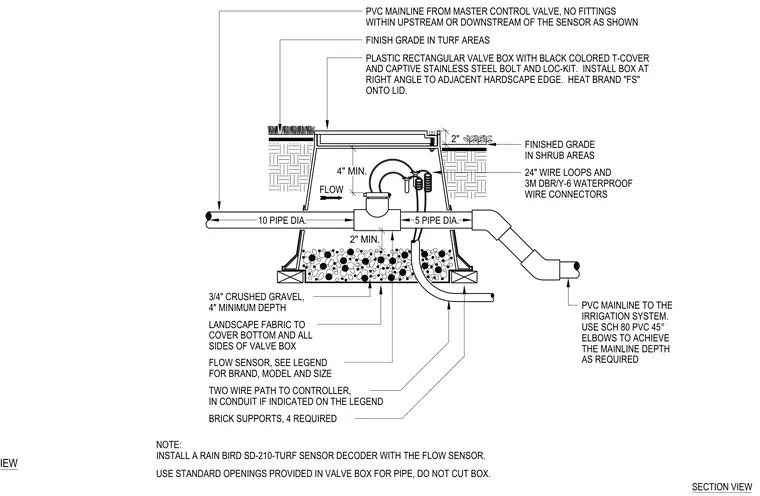

An irrigation flow sensor is housed within a plastic rectangular valve box with a black colored T-cover and captive stainless steel bolt with a loc-kit. The box sits on a four-inch minimum depth of three-quarter-inch crushed gravel enveloped in landscape fabric covering the bottom and all sides, elevated on four required brick supports. The PVC mainline connects to the flow sensor with required upstream and downstream straight pipe diameters, utilizing schedule 80 PVC forty-five-degree elbows to achieve the necessary mainline depth. Waterproof wire connectors with twenty-four-inch wire loops link the two-wire path to the controller, and a Rain Bird SD-210-turf sensor decoder is installed with the flow sensor.
