Landscape · L-DGWZA

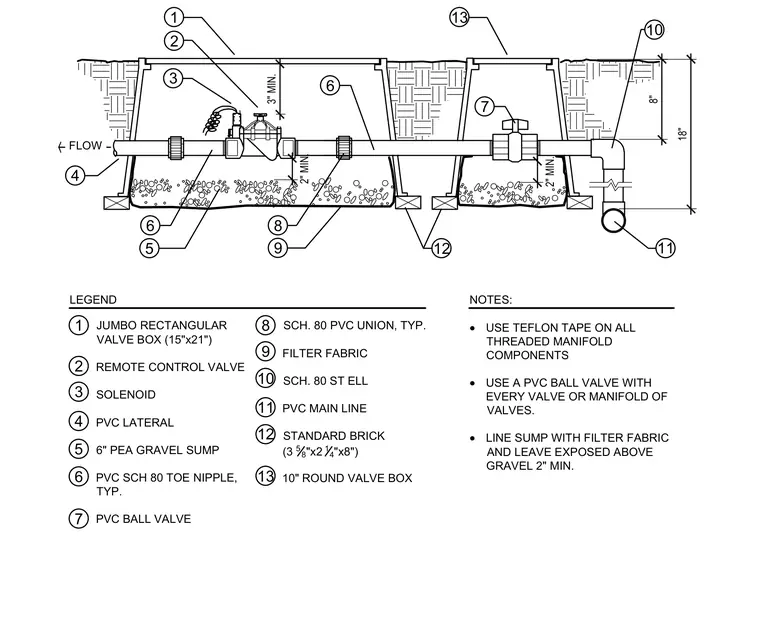

Remote Control Valve and Manifold Assembly in Valve Box

Materials

About this detail

An underground remote control valve and manifold assembly is housed within a jumbo rectangular valve box and a 10-inch round valve box set over standard brick supports. The system utilizes Schedule 80 PVC piping including toe nipples, unions, a ball valve, and a standard elbow connecting to the main line, with threaded manifold components wrapped in Teflon tape. A 6-inch pea gravel sump lines the bottom of the enclosure and is wrapped in filter fabric left exposed at least two inches above the gravel. All PVC connections and valves are arranged to maintain minimum clearances of two inches from the sump floor and three inches from the top of the valve box.
