Synthetic Turf on Structure

Materials

Elements

Floors / Slabs Arches Waterproofing / Flashing Drainage Site / Paving

About this detail

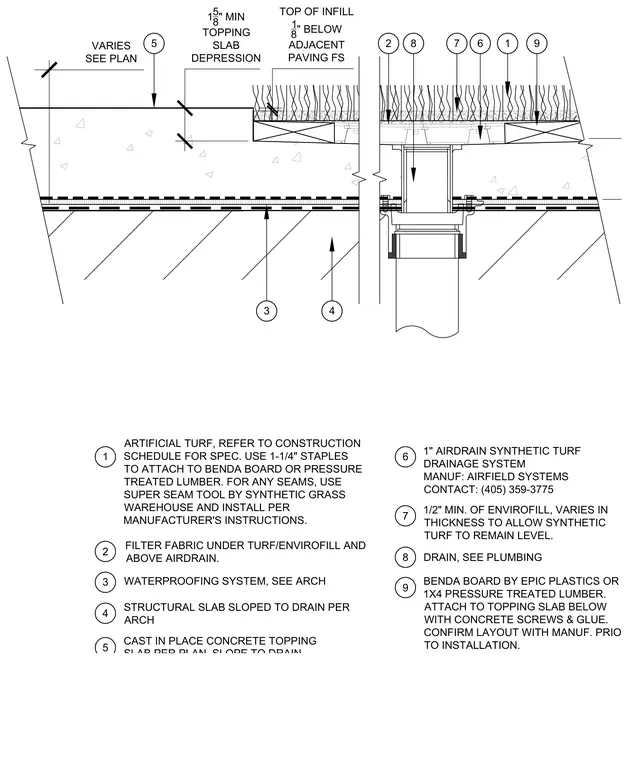

A synthetic turf installation over a structural concrete slab with a cast-in-place concrete topping slab sloped to a drain. A waterproofing system is applied directly to the structural slab beneath a one-inch Airdrain synthetic turf drainage system. Filter fabric is placed over the drainage mat to separate it from a minimum half-inch layer of Envirofill infill. Benda Board or one-by-four pressure-treated lumber is secured to the topping slab using concrete screws and glue to serve as perimeter edge restraint, with the artificial turf fastened using one-and-one-quarter-inch staples. Seams are joined using the manufacturer's specified Super Seam tool.
