Landscape · L-DDRDD

Vine Planting

Elements

About this detail

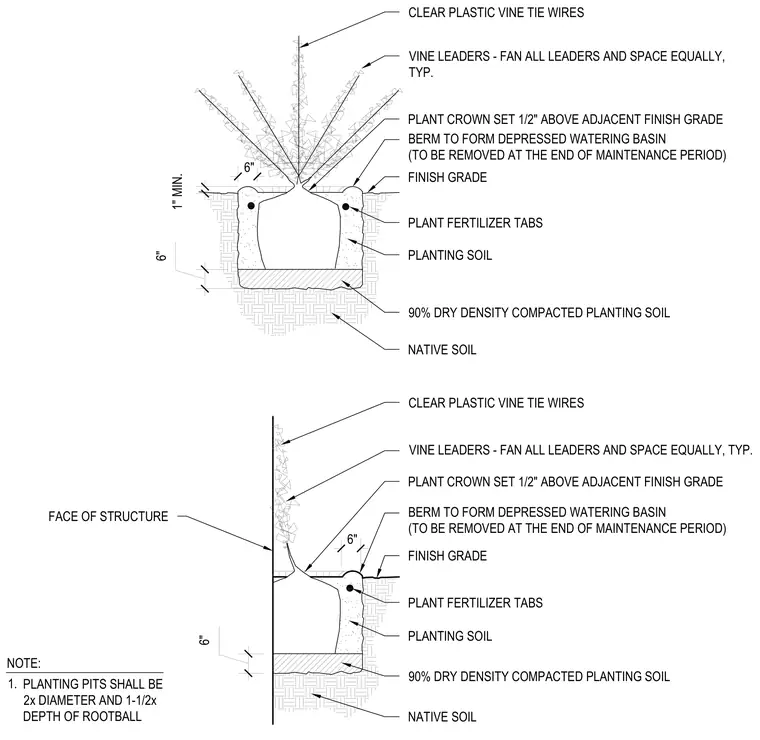

Planting pits are excavated to twice the diameter and one and a half times the depth of the rootball, set over a compacted layer of ninety percent dry density planting soil and native soil. Plant fertilizer tabs are placed within the planting soil, and the plant crown is set one-half inch above the adjacent finish grade. A temporary soil berm forms a depressed watering basin around the base to be removed at the end of the maintenance period. Vine leaders are fanned and spaced evenly against the face of the structure, secured using clear plastic vine tie wires.
