An irrigation trench is excavated and backfilled beneath finish grade in lawn areas, maintaining a five-inch deep topsoil layer over compacted backfill. The trench accommodates a PVC mainline and a PVC lateral line, which is set eighteen inches deep for rotor and impact head installations. Two inches of sand or rock-free soil surround all pipe within the bedding zone. Control wires are taped to the side of the main line at ten feet on center, maintaining a specified vertical separation between pipes and a two-inch horizontal separation.

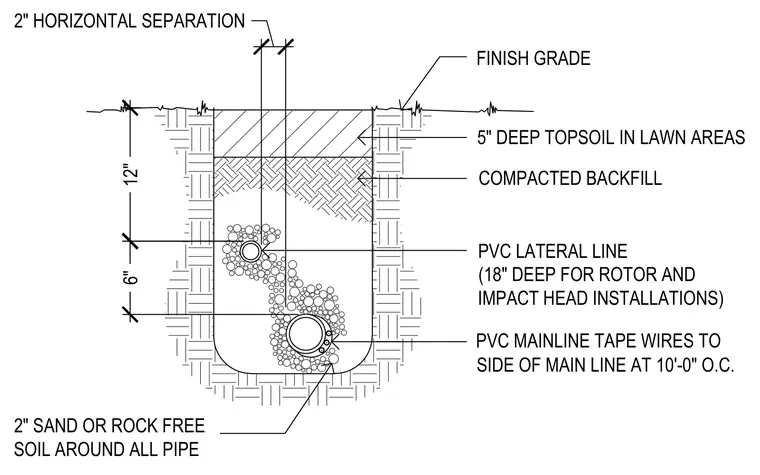

PVC LATERAL LINE (18" DEEP FOR ROTOR AND IMPACT HEAD INSTALLATIONS) COMPACTED BACKFILL FINISH GRADE 5" DEEP TOPSOIL IN LAWN AREAS 2" SAND OR ROCK FREE SOIL AROUND ALL PIPE PVC MAINLINE TAPE WIRES TO SIDE OF MAIN LINE AT 10'-0" O.C. 12" 6" 2" HORIZONTAL SEPARATION
