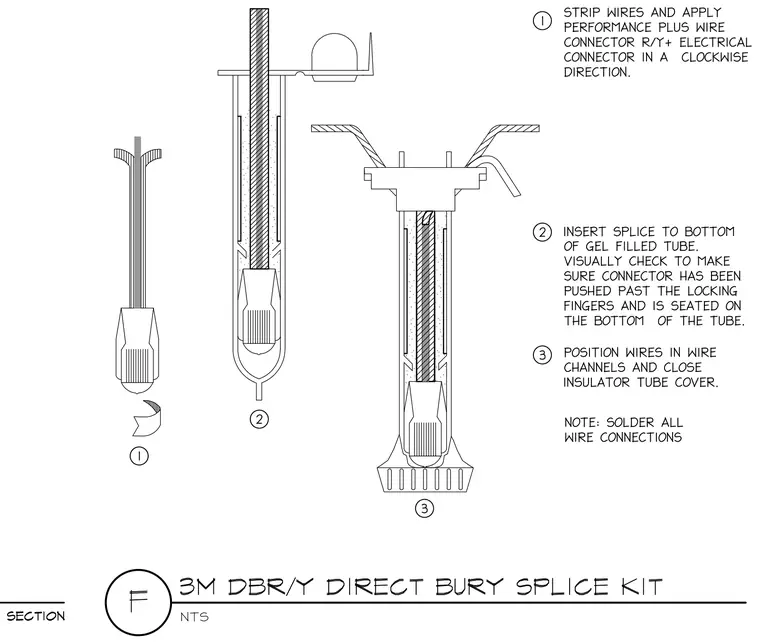

Strip the wires and apply a Performance Plus wire connector R/Y+ electrical connector in a clockwise direction. Insert the splice to the bottom of the gel-filled tube, visually checking to make sure the connector is pushed past the locking fingers and is seated on the bottom of the tube. Position the wires in the wire channels and close the insulator tube cover. Solder all wire connections as noted.
