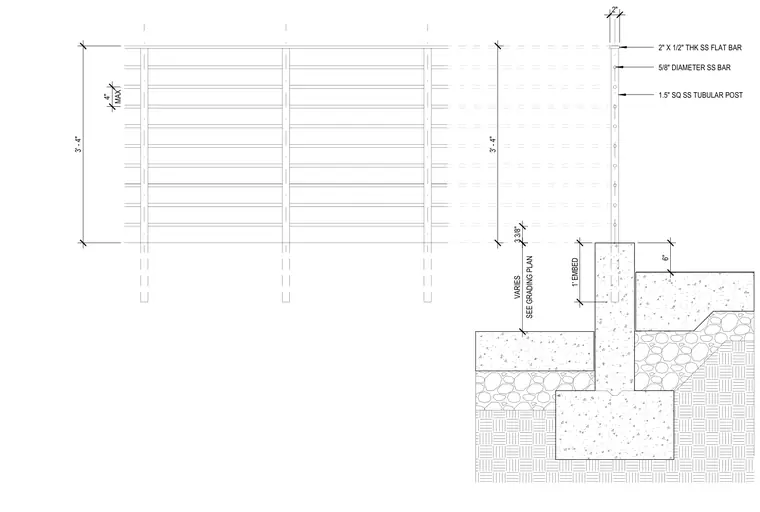

A 1.5-inch square stainless steel tubular post connects to a 2-inch by 1/2-inch thick stainless steel flat bar top rail. Five horizontal 5/8-inch diameter stainless steel bars run through the intermediate posts at a maximum spacing of 4 inches. The guardrail stands 3 feet 4 inches tall and embeds 1 foot into a reinforced concrete footing, with embedment depth varying per the grading plan. The concrete curb sits on compacted subgrade and crushed stone base.
2" 1' EMBED 2" X 1/2" THK SS FLAT BAR 5/8" DIAMETER SS BAR 1.5" SQ SS TUBULAR POST 3' - 4" 3 3/8" SEE GRADING PLAN VARIES MAX 4" 6" 3' - 4"
