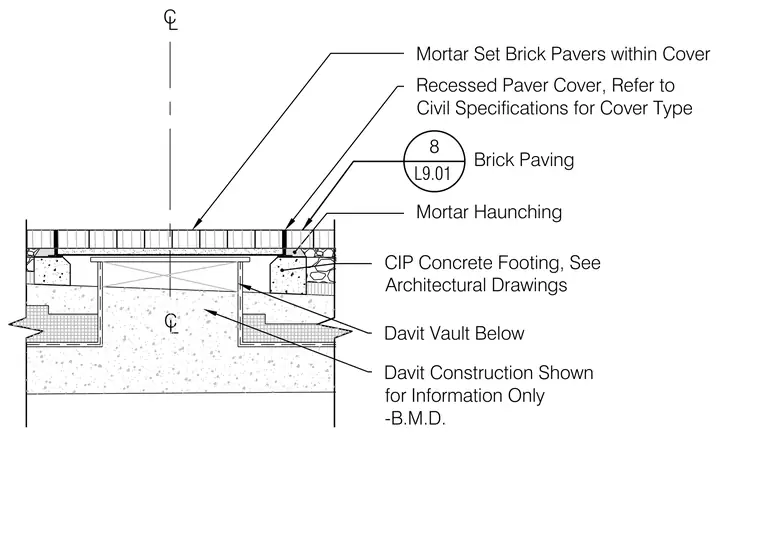

Mortar set brick pavers are positioned within a recessed paver cover supported by cast-in-place concrete footings. A mortar haunching stabilizes the edge of the paver assembly adjacent to the vault structure. The underlying davit vault construction is shown for informational purposes only. Civil specifications dictate the exact type of recessed cover to be used.
Mortar Set Brick Pavers within Cover CIP Concrete Footing, See Architectural Drawings Mortar Haunching CL CL Davit Construction Shown for Information Only -B.M.D. Recessed Paver Cover, Refer to Civil Specifications for Cover Type Davit Vault Below 8 L9.01 Brick Paving
