The assembly consists of a one-inch-thick shelf supported by a Unistrut P1000 horizontal frame and two-by-two-inch telescoping Unistrut vertical members. Unistrut P2458-18 tubular knee braces provide lateral support and connect back to the vertical framing. The entire frame is anchored to the overhead structure above to support a total weight of four hundred pounds. Eight duplex outlets are integrated into the frame as specified in division twenty-six.

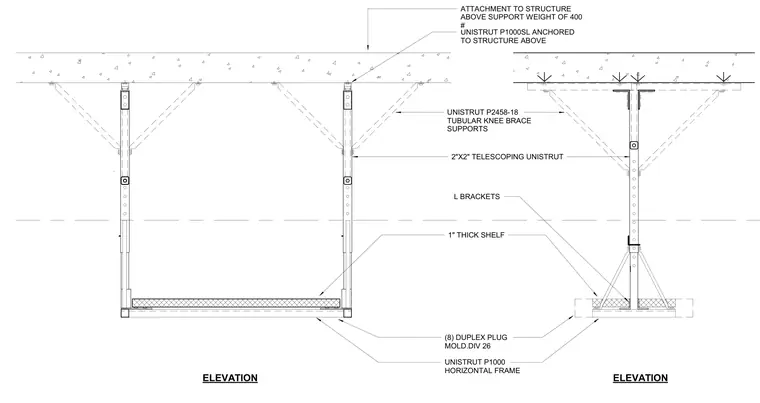

ELEVATION UNISTRUT P2458-18 TUBULAR KNEE BRACE SUPPORTS UNISTRUT P1000SL ANCHORED TO STRUCTURE ABOVE 1" THICK SHELF ELEVATION ATTACHMENT TO STRUCTURE ABOVE SUPPORT WEIGHT OF 400 # (8) DUPLEX PLUG MOLD.DIV 26 UNISTRUT P1000 HORIZONTAL FRAME 2"X2" TELESCOPING UNISTRUT L BRACKETS
