Mechanical · L-D2HMZ

Building Hot

About this detail

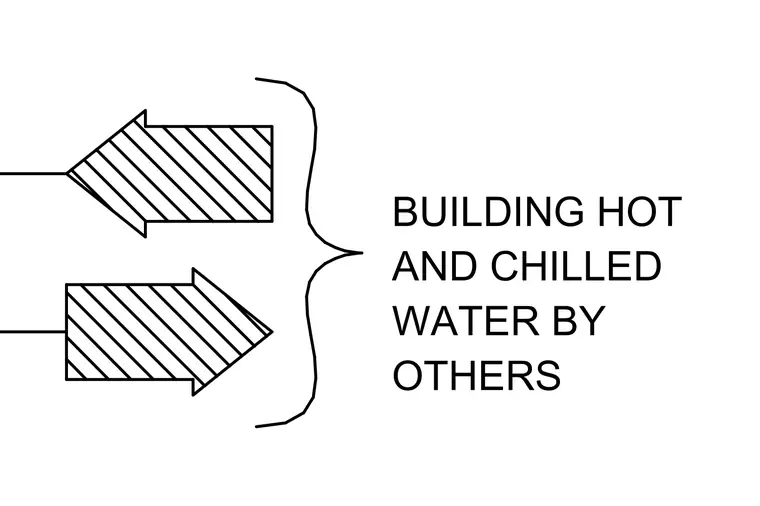

Building hot and chilled water utility connections are provided by others as indicated by schematic flow arrows.

BUILDING HOT AND CHILLED WATER BY OTHERS
