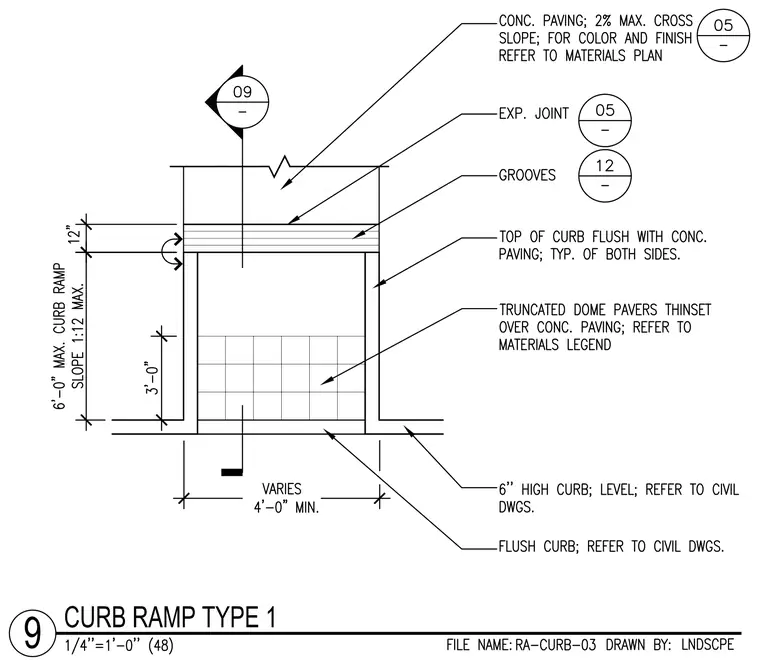

Concrete paving slopes at a maximum of two percent toward the transition, featuring control grooves and an expansion joint. The ramp has a maximum slope of one-to-twelve over a six-foot vertical maximum dimension, bounded by a six-inch high curb that is typical on both sides. Truncated dome pavers are set in thinset over concrete paving at the lower landing. The ramp transitions to a flush curb at the bottom, with widths varying from a four-foot minimum.
