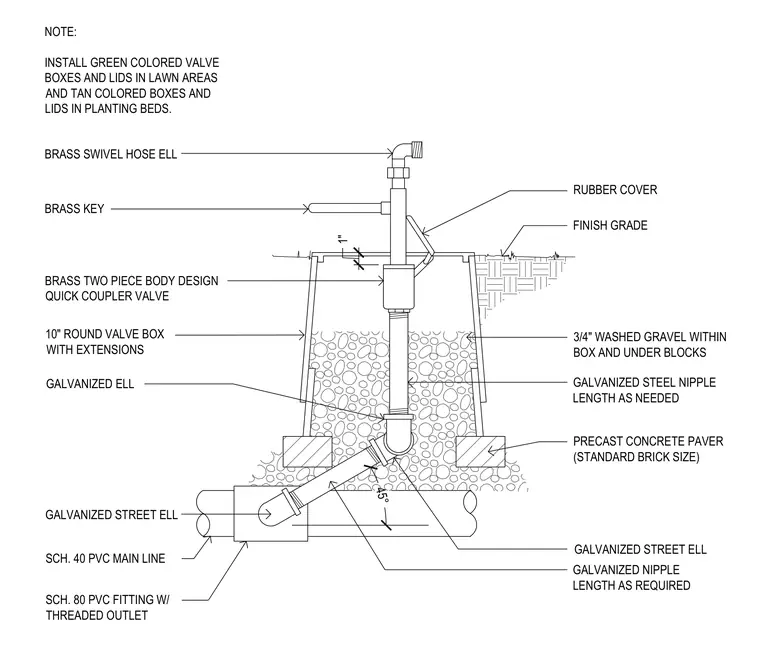

A quick coupler valve with a two-piece brass body connects to a schedule 40 PVC main line through a schedule 80 PVC fitting with a threaded outlet, galvanized street elbows, and galvanized steel nipples. The assembly is housed inside a ten-inch round valve box with extensions, supported by precast concrete pavers and surrounded by three-quarter-inch washed gravel. A brass swivel hose ell and brass key attach at the top beneath a rubber cover set flush with the finish grade. Green-colored valve boxes and lids are installed in lawn areas, while tan-colored boxes and lids are used in planting beds.
1" 45° BRASS SWIVEL HOSE ELL BRASS KEY BRASS TWO PIECE BODY DESIGN QUICK COUPLER VALVE 10" ROUND VALVE BOX WITH EXTENSIONS GALVANIZED ELL GALVANIZED STREET ELL GALVANIZED STREET ELL SCH. 40 PVC MAIN LINE SCH. 80 PVC FITTING W/ THREADED OUTLET FINISH GRADE RUBBER COVER 3/4" WASHED GRAVEL WITHIN BOX AND UNDER BLOCKS PRECAST CONCRETE PAVER (STANDARD BRICK SIZE) GALVANIZED STEEL NIPPLE LENGTH AS NEEDED GALVANIZED NIPPLE LENGTH AS REQUIRED NOTE: INSTALL GREEN COLORED VALVE BOXES AND LIDS IN LAWN AREAS AND TAN COLORED BOXES AND LIDS IN PLANTING BEDS.
