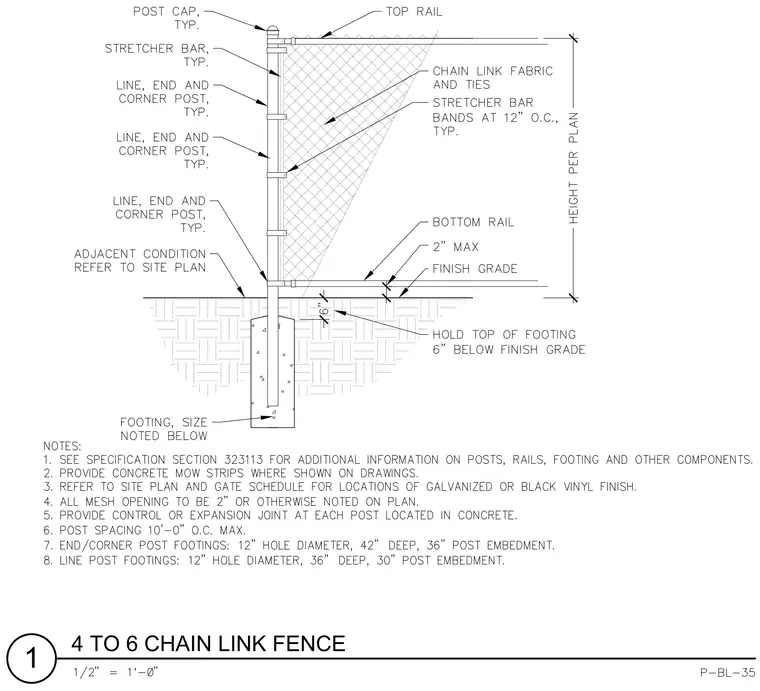

4 to 6 Chain Link Fence

About this detail

A chain link fence assembly comprises line, end, and corner posts set into concrete footings sized per plan, with the top of the footing held six inches below finish grade. A top rail and bottom rail frame the chain link fabric, which is secured using stretcher bars, stretcher bar bands spaced at twelve inches on center, post caps, and wire ties. The bottom rail maintains a maximum two-inch clearance above finish grade. End and corner post footings require a twelve-inch hole diameter and forty-two-inch depth with thirty-six-inch post embedment, while line post footings require a twelve-inch hole diameter and thirty-six-inch depth with thirty-inch post embedment. Expansion or control joints are provided at each post located in concrete.
