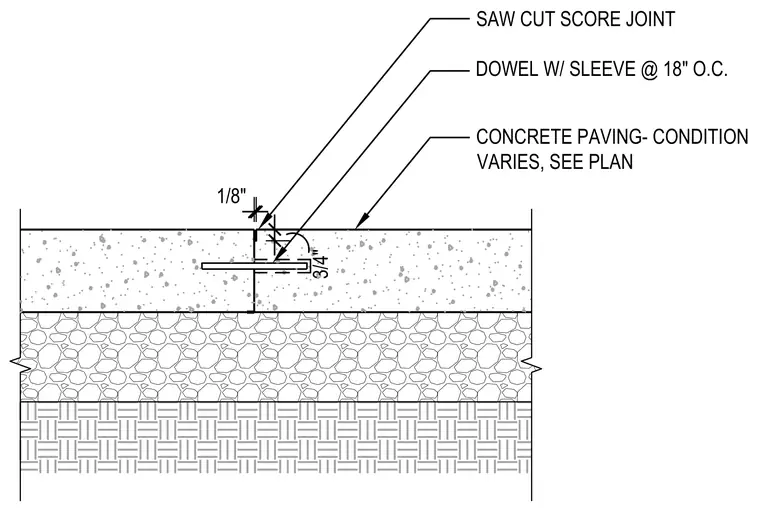

Concrete paving is detailed with a sawcut score joint at the surface and a smooth dowel with a sleeve spaced at eighteen inches on center. The joint depth is set to three quarters of an inch with a one-eighth inch width at the surface. The concrete slab rests on a compacted aggregate base course over a prepared subgrade.
SAW CUT SCORE JOINT DOWEL W/ SLEEVE @ 18" O.C. CONCRETE PAVING- CONDITION VARIES, SEE PLAN 1/8" 3/4"
