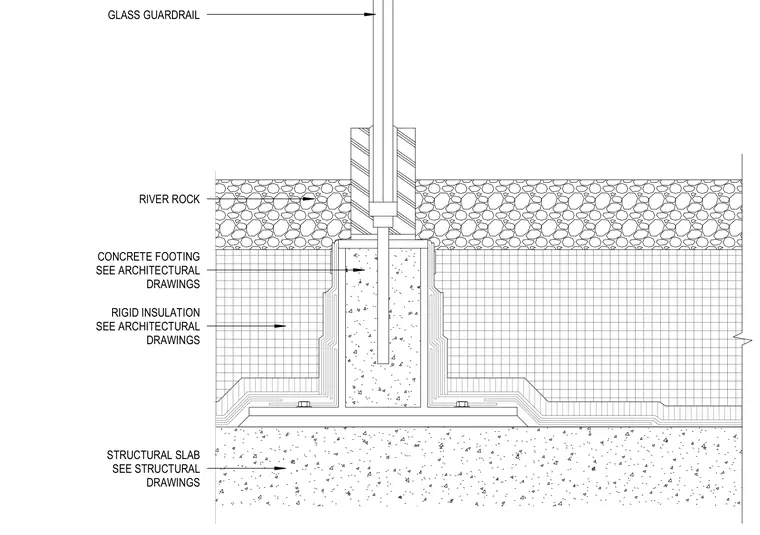

A glass guardrail mounts above a river rock mulch bed that is set over rigid insulation. The insulation wraps a concrete footing, which is supported by a structural slab per structural drawings. The guardrail assembly anchors through the river rock layer and into the underlying concrete elements.
RIVER ROCK CONCRETE FOOTING SEE ARCHITECTURAL DRAWINGS RIGID INSULATION SEE ARCHITECTURAL DRAWINGS STRUCTURAL SLAB SEE STRUCTURAL DRAWINGS GLASS GUARDRAIL
