Vehicle Gate Hinge Connection at CMU Wall

Materials

Concrete Steel Masonry / CMU Metal (misc.)

Elements

Walls Stairs Railings / Guards Entrances Site / Paving Connections / Plates

Connections

HSS Connection Welded Connection

About this detail

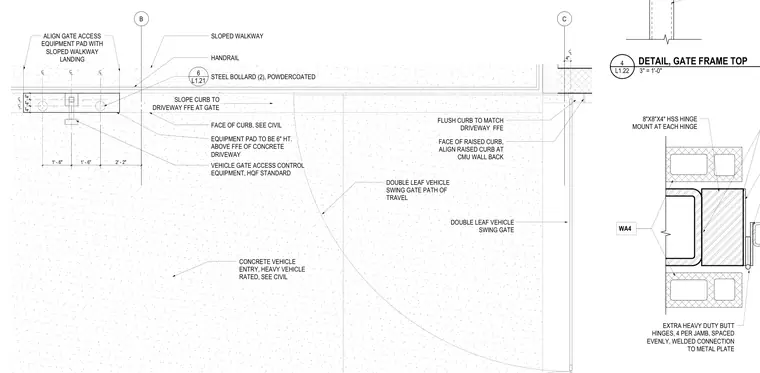

An eight-inch by eight-inch by quarter-inch hollow structural section hinge mount is attached to the concrete masonry unit wall and receives an extra heavy-duty butt hinge. Four hinges are installed per jamb and spaced evenly along the height. Each hinge features a welded connection to the metal plate mount.
