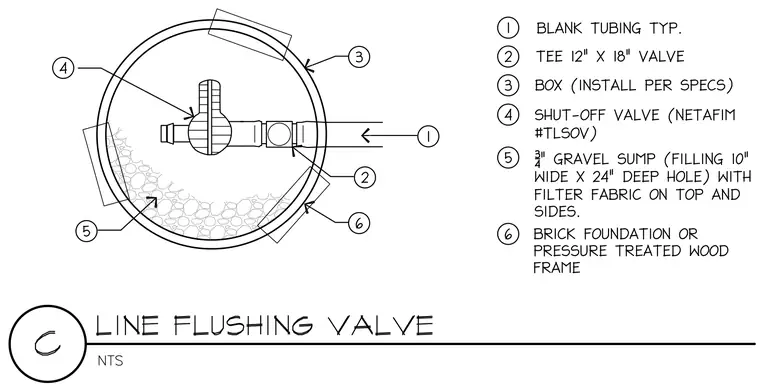

The assembly is housed within a box installed per specifications, supported by a brick foundation or pressure-treated wood frame. A 3/4-inch gravel sump filling a 10-inch wide by 24-inch deep hole is wrapped with filter fabric on top and sides. Water is supplied via blank tubing connected to a tee 12-inch by 18-inch valve and a Netafim #TLSOV shut-off valve.
