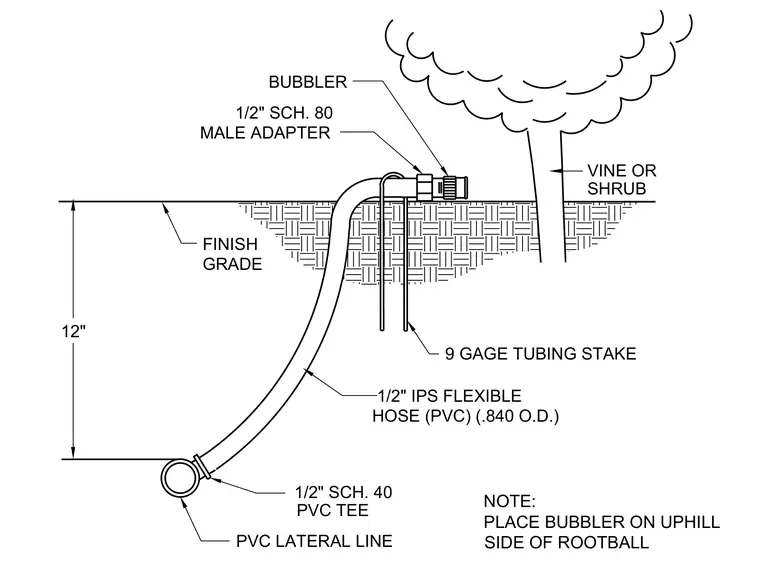

A one-half inch schedule 40 PVC tee connects to the PVC lateral line below finish grade, feeding a one-half inch IPS flexible PVC hose with an outer diameter of eighty-four hundredths of an inch. The flexible hose rises to a one-half inch schedule 80 male adapter and bubbler head positioned near the shrub or vine rootball. A nine gauge tubing stake secures the flexible line assembly in the soil. The bubbler is placed on the uphill side of the rootball twelve inches below finish grade.
BUBBLER PVC LATERAL LINE PVC TEE 1/2" SCH. 40 1/2" SCH. 80 MALE ADAPTER FINISH GRADE 9 GAGE TUBING STAKE 1/2" IPS FLEXIBLE HOSE (PVC) (.840 O.D.) VINE OR SHRUB NOTE: PLACE BUBBLER ON UPHILL SIDE OF ROOTBALL 12"
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
