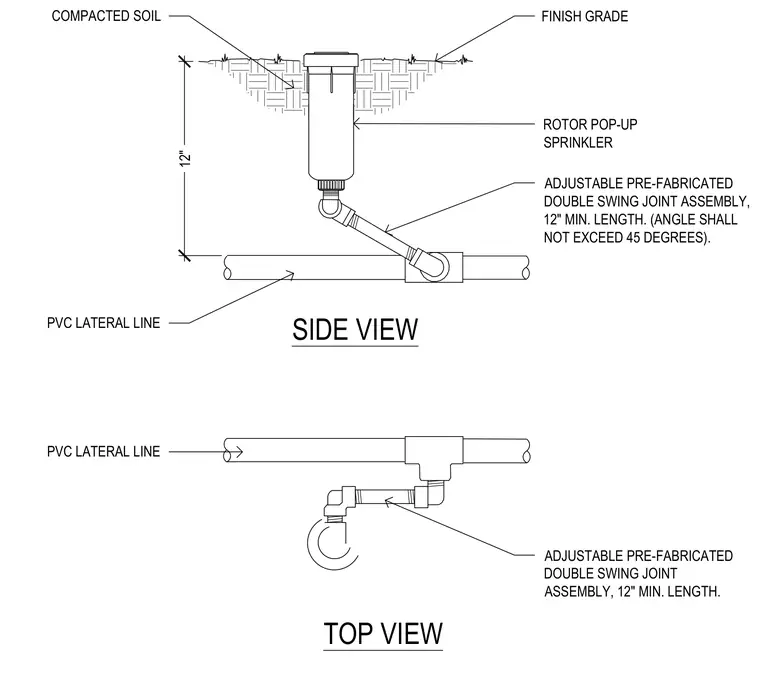

A rotor pop-up sprinkler connects to a PVC lateral line using an adjustable pre-fabricated double swing joint assembly with a twelve-inch minimum length. The swing joint angle is restricted so it shall not exceed forty-five degrees. Compacted soil surrounds the upper body up to the finish grade.
PVC LATERAL LINE TOP VIEW ADJUSTABLE PRE-FABRICATED DOUBLE SWING JOINT ASSEMBLY, 12" MIN. LENGTH. COMPACTED SOIL FINISH GRADE ROTOR POP-UP SPRINKLER ADJUSTABLE PRE-FABRICATED DOUBLE SWING JOINT ASSEMBLY, 12" MIN. LENGTH. (ANGLE SHALL NOT EXCEED 45 DEGREES). SIDE VIEW 12" PVC LATERAL LINE
