Landscape · L-CJRSA

Concrete Grid Pavers

Materials

Elements

About this detail

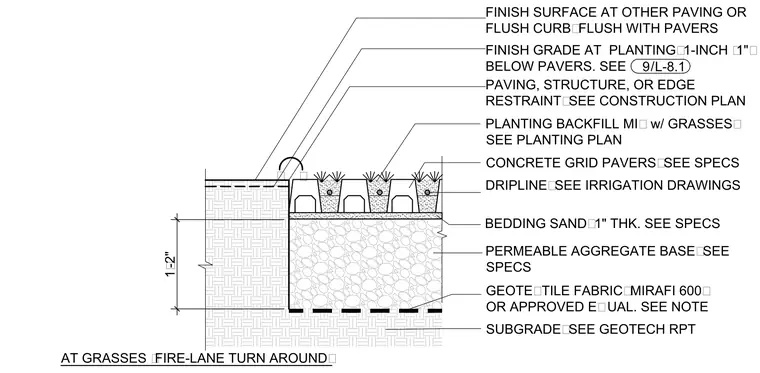

Concrete grid pavers are bedded on one-inch thick sand over a permeable aggregate base. A geotextile fabric, specifically Mirafi 600X or approved equal, separates the base from the subgrade. Planting backfill mix with grasses fills the paver voids for fire-lane turn around applications, incorporating a dripline per irrigation drawings. Finish grade at planting is set one inch below the pavers, while finish surfaces at other paving or flush curbs align flush with the pavers against edge restraints.
