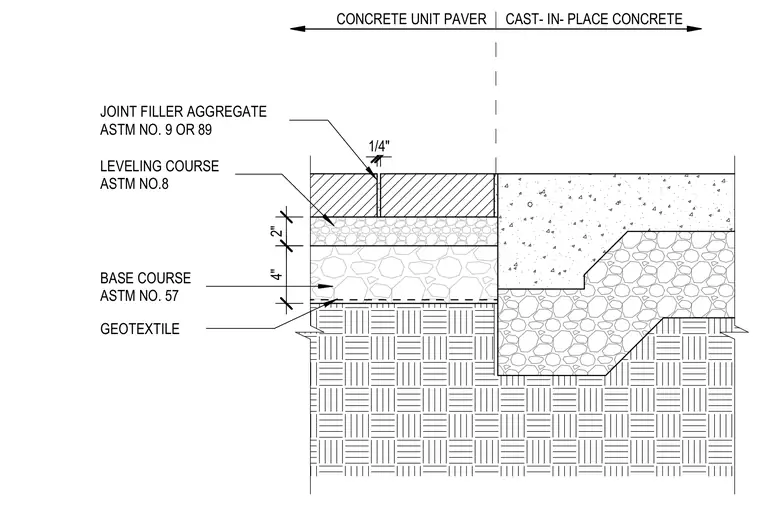

Concrete unit pavers are laid with a one-quarter-inch joint filled with ASTM No. 9 or 89 aggregate. The pavers rest on a two-inch leveling course of ASTM No. 8 aggregate, which is supported by a four-inch base course of ASTM No. 57 aggregate. A geotextile fabric separates the base course from the compacted subgrade below. The permeable assembly transitions adjacent to a cast-in-place concrete slab.
CONCRETE UNIT PAVER CAST- IN- PLACE CONCRETE 1/4" JOINT FILLER AGGREGATE ASTM NO. 9 OR 89 LEVELING COURSE ASTM NO.8 BASE COURSE ASTM NO. 57 GEOTEXTILE 2" 4"
