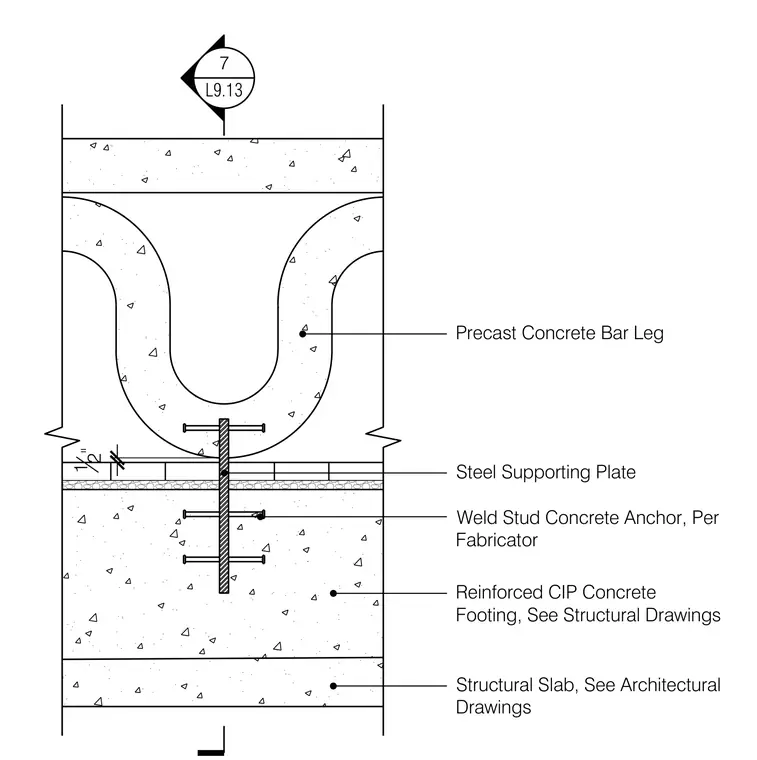

A precast concrete bar leg connects to a reinforced cast-in-place concrete footing via a steel supporting plate and weld stud concrete anchors. A one-half-inch clearance is maintained between the precast member and the supporting plate. The footing bears on a structural slab. Reinforcing and concrete specifications are coordinated per architectural and structural drawings.
Structural Slab, See Architectural Drawings Reinforced CIP Concrete Footing, See Structural Drawings 7 L9.13 Weld Stud Concrete Anchor, Per Fabricator Steel Supporting Plate 12" Precast Concrete Bar Leg
