A compacted decomposed granite path sits at a minimum depth of three inches, held down one-half inch from the top of the metal edge and adjacent concrete paving. The assembly rests over a four-inch minimum depth aggregate base layer and compacted sub-grade, separated by geotextile fabric. A mulch bed bordered by geotextile fabric flanks the pathway edge. Positive drainage across the path must be maintained by the contractor to prevent low spots and puddling.

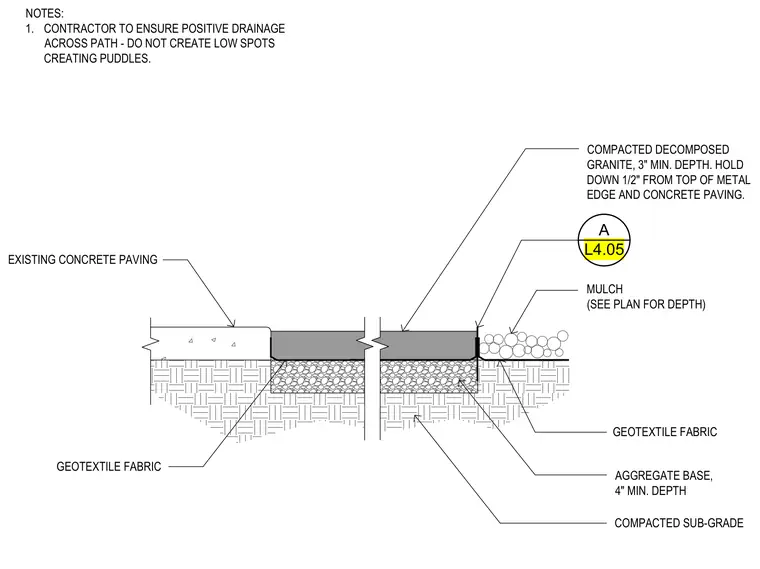

NOTES: 1. CONTRACTOR TO ENSURE POSITIVE DRAINAGE ACROSS PATH - DO NOT CREATE LOW SPOTS CREATING PUDDLES. COMPACTED DECOMPOSED GRANITE, 3" MIN. DEPTH. HOLD DOWN 1/2" FROM TOP OF METAL EDGE AND CONCRETE PAVING. AGGREGATE BASE, 4" MIN. DEPTH COMPACTED SUB-GRADE EXISTING CONCRETE PAVING GEOTEXTILE FABRIC MULCH (SEE PLAN FOR DEPTH) GEOTEXTILE FABRIC A L4.05
