A prefabricated pop-up sprinkler connects to a Schedule 40 PVC lateral line through a Class 315 PVC triple swing joint and a Schedule 40 tee. The top of the sprinkler is positioned flush with the finish grade and maintains a minimum of three inches and a maximum of six inches clearance from adjacent pavement or curbs.

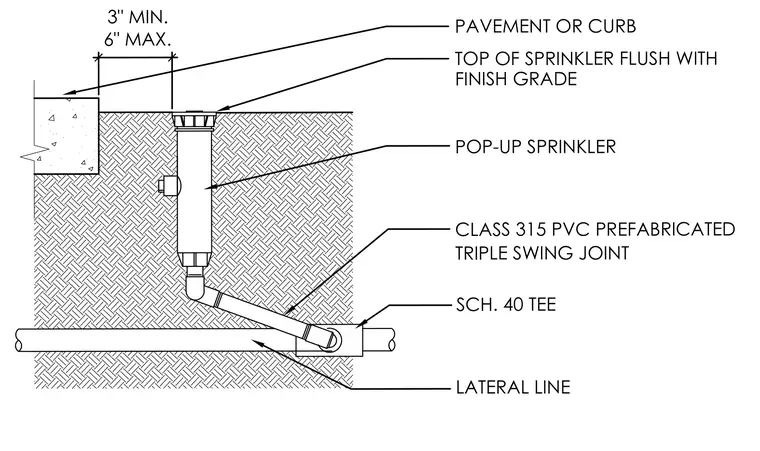

LATERAL LINE SCH. 40 TEE CLASS 315 PVC PREFABRICATED POP-UP SPRINKLER FINISH GRADE TOP OF SPRINKLER FLUSH WITH PAVEMENT OR CURB 3" MIN. 6" MAX. TRIPLE SWING JOINT
