An isolation valve connects to the PVC mainline using schedule 80 PVC threaded nipples and female adaptors on both sides of the valve, matching the mainline size. Schedule 80 PVC unions are installed on either side with nipple lengths adjusted to allow removal of the union nut. The valve sits inside a ten-inch round valve box extending up to the finish grade, supported by precast concrete pavers and a three-quarter-inch washed gravel bed within the box and under the blocks. A two-inch class 200 PVC sleeve is installed over brass isolation valves placed at depths of eighteen inches or deeper.

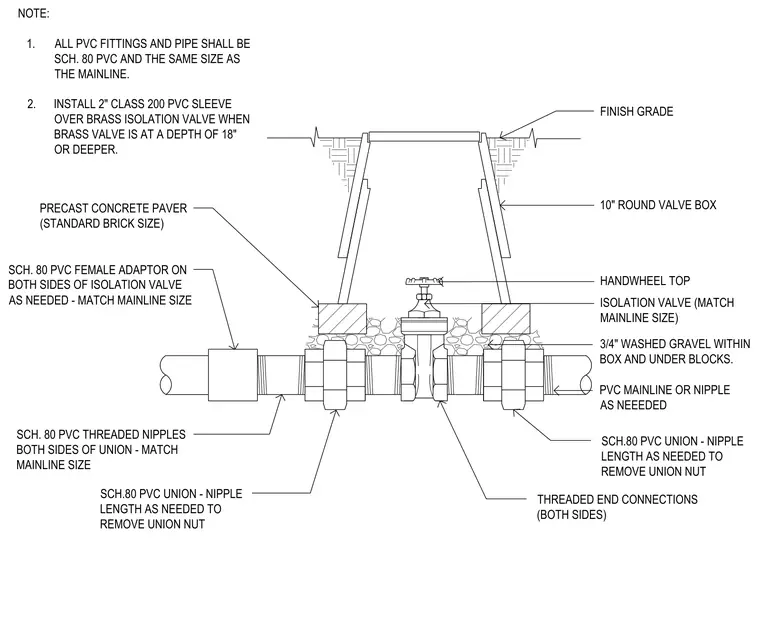

10" ROUND VALVE BOX FINISH GRADE ISOLATION VALVE (MATCH MAINLINE SIZE) SCH.80 PVC UNION - NIPPLE LENGTH AS NEEDED TO REMOVE UNION NUT SCH. 80 PVC THREADED NIPPLES BOTH SIDES OF UNION - MATCH MAINLINE SIZE SCH. 80 PVC FEMALE ADAPTOR ON BOTH SIDES OF ISOLATION VALVE AS NEEDED - MATCH MAINLINE SIZE PVC MAINLINE OR NIPPLE AS NEEEDED SCH.80 PVC UNION - NIPPLE LENGTH AS NEEDED TO REMOVE UNION NUT NOTE: 1. ALL PVC FITTINGS AND PIPE SHALL BE SCH. 80 PVC AND THE SAME SIZE AS THE MAINLINE. 2. INSTALL 2" CLASS 200 PVC SLEEVE OVER BRASS ISOLATION VALVE WHEN BRASS VALVE IS AT A DEPTH OF 18" OR DEEPER. HANDWHEEL TOP THREADED END CONNECTIONS (BOTH SIDES) PRECAST CONCRETE PAVER (STANDARD BRICK SIZE) 3/4" WASHED GRAVEL WITHIN BOX AND UNDER BLOCKS.
