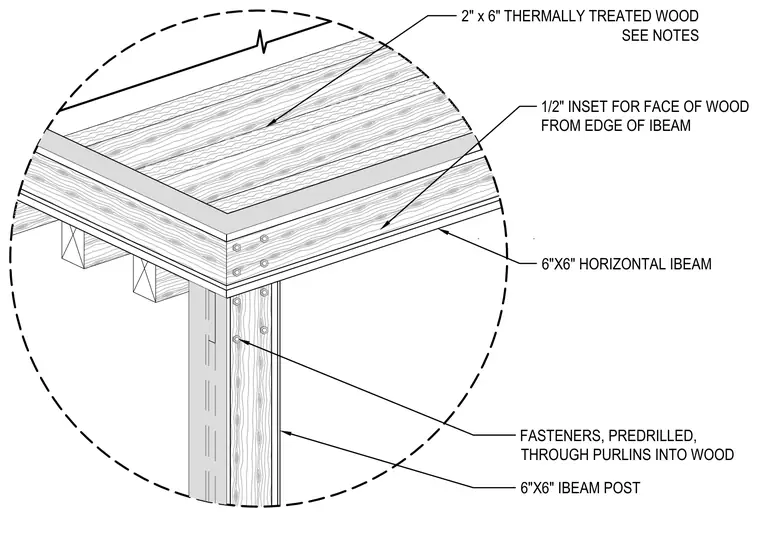

Two-inch by six-inch thermally treated wood decking sits over wood purlins and frames into a six-inch by six-inch horizontal steel I-beam. The wood face is set back one-half inch from the edge of the steel beam. Predrilled fasteners secure the wood framing through the purlins into the wood members. A six-inch by six-inch steel I-beam post supports the horizontal frame.
2" x 6" THERMALLY TREATED WOOD SEE NOTES 6"X6" IBEAM POST 6"X6" HORIZONTAL IBEAM 1/2" INSET FOR FACE OF WOOD FROM EDGE OF IBEAM FASTENERS, PREDRILLED, THROUGH PURLINS INTO WOOD
