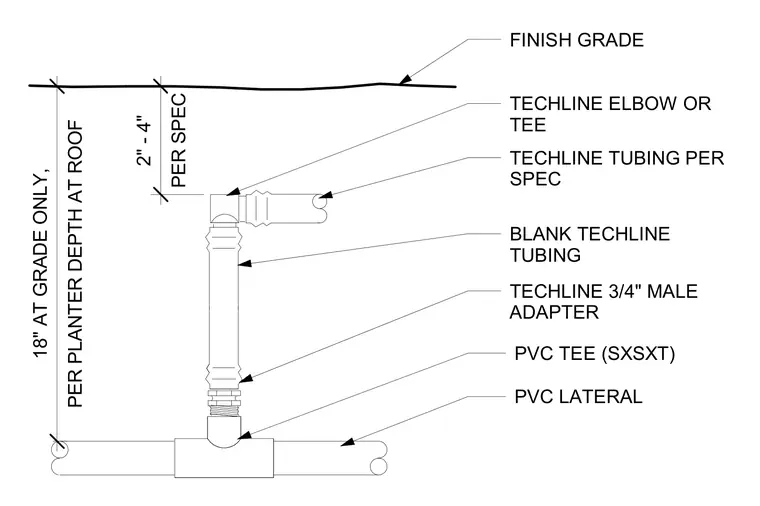

A dripline start connection originates from a PVC lateral and extends up to irrigation tubing. A PVC tee connects directly to the PVC lateral line, which transitions upward via a Techline 3/4-inch male adapter and a section of blank Techline tubing. A Techline elbow or tee ties the vertical riser into the horizontal Techline irrigation tubing per specification. The entire assembly sits below the finish grade, maintaining a depth of two to four inches per specification for planter applications or eighteen inches at grade only.
PER SPEC 2" - 4" PER PLANTER DEPTH AT ROOF 18" AT GRADE ONLY, FINISH GRADE TECHLINE ELBOW OR TEE TECHLINE TUBING PER SPEC BLANK TECHLINE TUBING TECHLINE 3/4" MALE ADAPTER PVC TEE (SXSXT) PVC LATERAL
