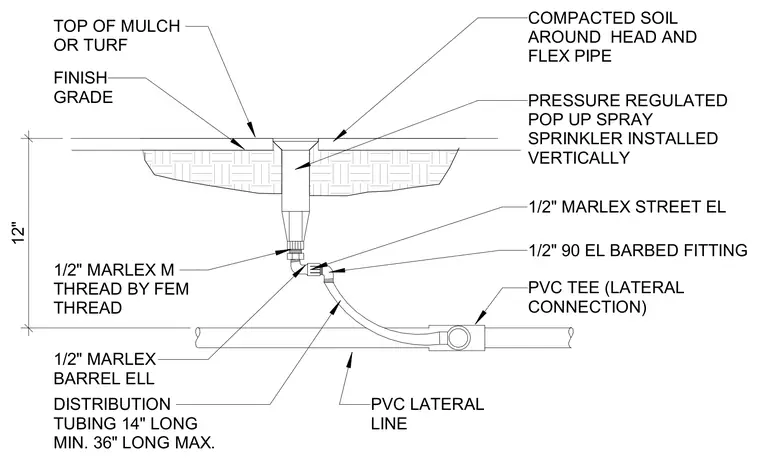

A pressure-regulated pop-up spray sprinkler is installed vertically with its top flush to the finish grade of mulch or turf. The sprinkler connects via a half-inch Marlex male-by-female threaded adapter and a half-inch Marlex barrel elbow. A flexible distribution tubing between fourteen and thirty-six inches long links the assembly to a half-inch ninety-degree elbow barbed fitting. The lateral connection ties into a PVC tee on the main PVC lateral line, surrounded by twelve inches of compacted soil.
12" FINISH GRADE COMPACTED SOIL AROUND HEAD AND FLEX PIPE 1/2" MARLEX M THREAD BY FEM THREAD DISTRIBUTION TUBING 14" LONG MIN. 36" LONG MAX. PVC LATERAL LINE PVC TEE (LATERAL CONNECTION) 1/2" MARLEX BARREL ELL PRESSURE REGULATED POP UP SPRAY SPRINKLER INSTALLED VERTICALLY 1/2" MARLEX STREET EL 1/2" 90 EL BARBED FITTING TOP OF MULCH OR TURF
