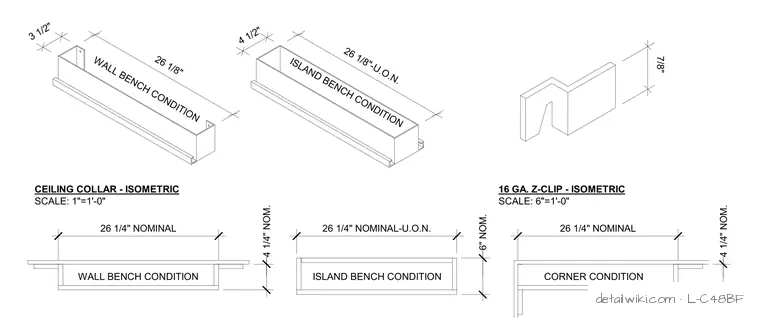

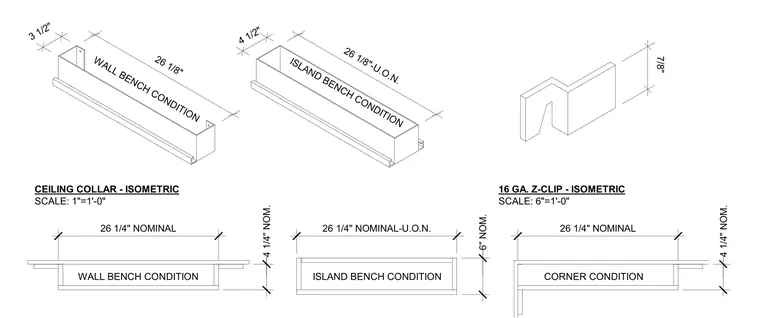

These isometric and plan details illustrate ceiling collar assemblies for wall bench, island bench, and corner bench conditions, along with a sixteen gauge Z-clip profile. The wall bench ceiling collar measures three and one-half inches by twenty-six and one-eighth inches, while the island bench collar measures four and one-half inches by twenty-six and one-eighth inches unless otherwise noted. Plan views show nominal dimensions including twenty-six and one-quarter inches length, four and one-quarter inches and six inches nominal widths. The Z-clip detail indicates a seven-eighths inch dimension.
WALL BENCH CONDITION ISLAND BENCH CONDITION CORNER CONDITION SCALE: 1"=1'-0" CEILING COLLAR - ISOMETRIC WALL BENCH CONDITION ISLAND BENCH CONDITION 4 1/2" 3 1/2" 26 1/8" 26 1/8"-U.O.N. SCALE: 6"=1'-0" 16 GA. Z-CLIP - ISOMETRIC 7/8" 26 1/4" NOMINAL 26 1/4" NOMINAL-U.O.N. 26 1/4" NOMINAL 4 1/4" NOM. 6" NOM. 4 1/4" NOM.
