Galvanized Steel Landscape Edging Detail

Materials

Elements

About this detail

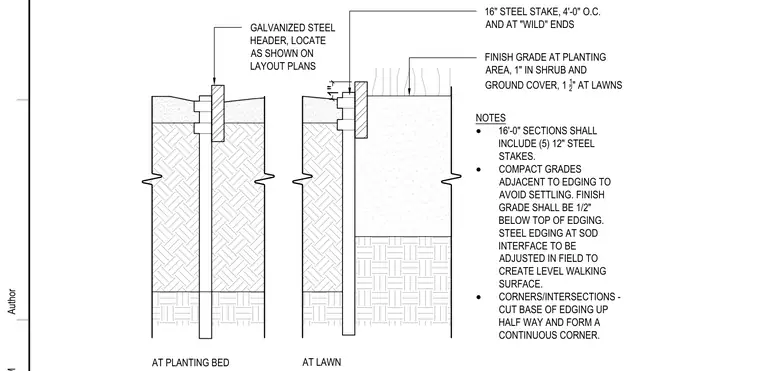

A one-inch galvanized steel header is anchored by sixteen-inch steel stakes spaced four feet on center and at all ends, with five twelve-inch stakes required per sixteen-foot section. Finish grades are compacted adjacent to the edging to prevent settling, set one-half inch below the top of the edging, and positioned one inch above finish grade in shrub and ground cover areas or one and one-half inches at lawns. Steel edging at sod interfaces is field-adjusted to create a level walking surface, while corners and intersections are formed by cutting the base of the edging up halfway.
