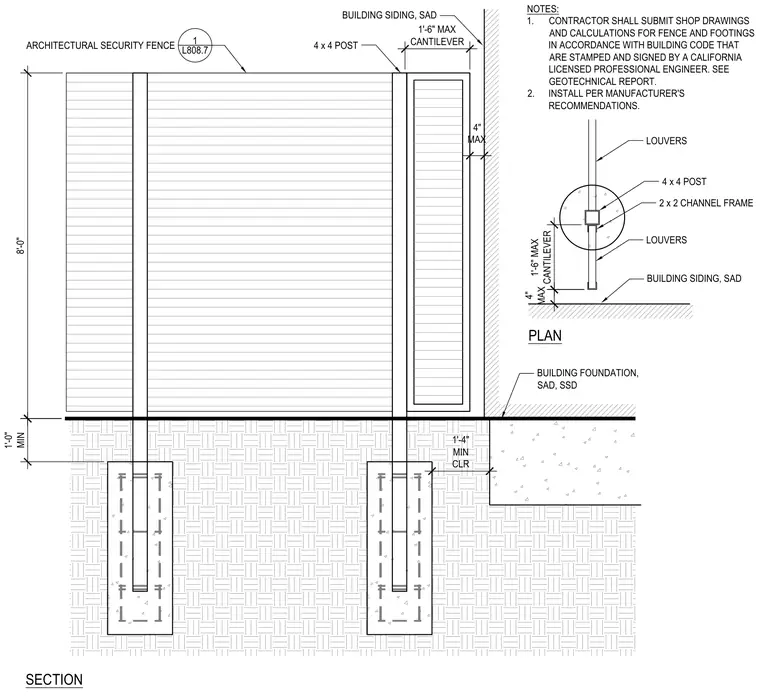

An architectural security fence installation adjacent to a building exterior utilizes four-by-four posts extending into cast-in-place concrete footings embedded below grade with a minimum depth of one foot. The fence features louvered panels within a two-by-two channel frame positioned near the building siding. A maximum cantilever of one foot six inches and specific clearances from the building foundation are indicated. General notes require shop drawings and calculations prepared by a licensed California professional engineer in accordance with the geotechnical report.
4" MAX 1'-0" MIN 8'-0" BUILDING SIDING, SAD 4 x 4 POST SECTION ARCHITECTURAL SECURITY FENCE 1'-6" MAX CANTILEVER L808.7 1 1'-4" MIN CLR BUILDING FOUNDATION, SAD, SSD PLAN 1'-6" MAX CANTILEVER 4" MAX 4 x 4 POST 2 x 2 CHANNEL FRAME LOUVERS LOUVERS BUILDING SIDING, SAD NOTES: 1. CONTRACTOR SHALL SUBMIT SHOP DRAWINGS AND CALCULATIONS FOR FENCE AND FOOTINGS IN ACCORDANCE WITH BUILDING CODE THAT ARE STAMPED AND SIGNED BY A CALIFORNIA LICENSED PROFESSIONAL ENGINEER. SEE GEOTECHNICAL REPORT. 2. INSTALL PER MANUFACTURER'S RECOMMENDATIONS.
