Base Cabinet Drawer and Door Section Profile

Elements

About this detail

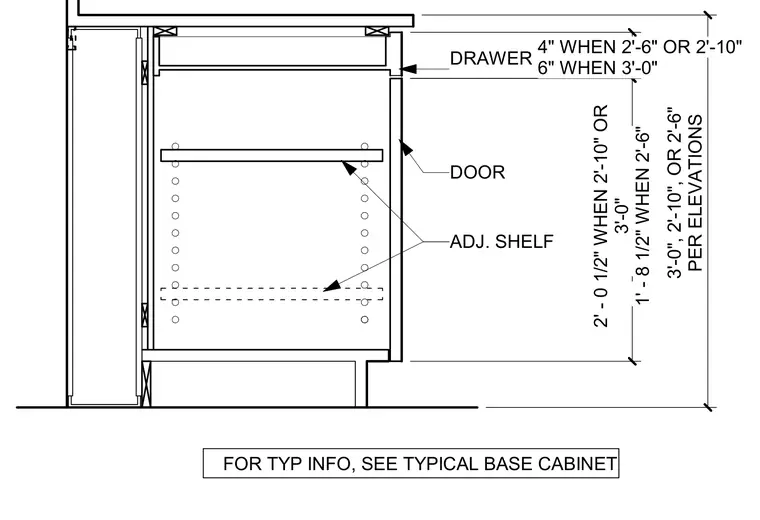

A base cabinet section features adjustable shelving, a door, and a top drawer. Vertical dimensions vary based on the overall unit height of 3'-0", 2'-10", or 2'-6" as indicated per elevations. The adjustable shelf rests on shelf pins spaced along the cabinet interior with an alternate position shown dashed. Typical information references the standard base cabinet construction.
