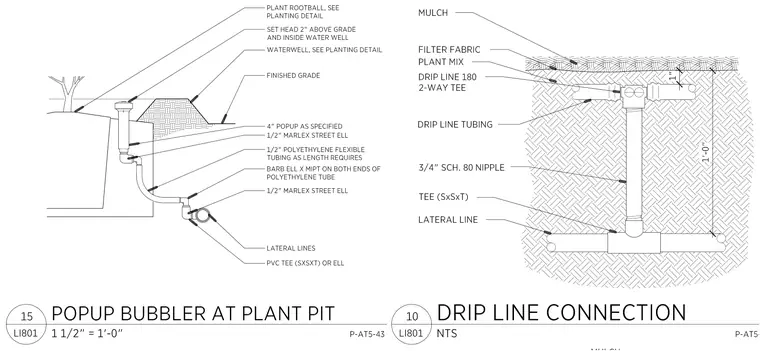

A popup bubbler assembly is installed at a plant pit with the head set two inches above grade inside a water well, connected via a half-inch Marlex street ell, half-inch polyethylene flexible tubing, a barb ell by male iron pipe thread, and another half-inch Marlex street ell to a lateral line with a PVC tee or ell. A separate drip line connection features mulch and filter fabric over a plant mix, with a drip line 180 two-way tee connected to drip line tubing, a three-quarter-inch Schedule 80 nipple, a tee (socket by socket by socket), and a lateral line installed at a one-foot depth below grade.
