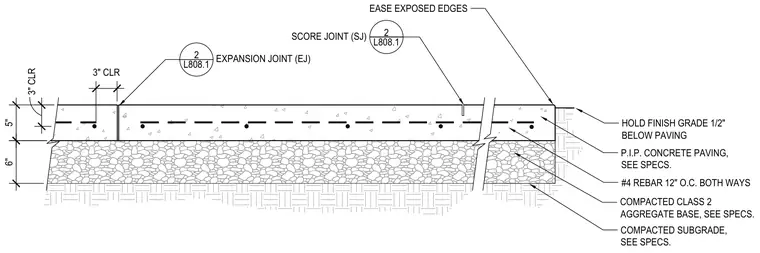

A standard cast-in-place concrete pedestrian paving assembly is placed over a compacted Class 2 aggregate base and compacted subgrade. The five-inch thick concrete slab is reinforced with number four rebar spaced at twelve inches on center both ways, maintained with a three-inch clearance. The assembly features an expansion joint and a scored control joint with eased exposed edges. The finish grade is held one-half inch below the paving surface.
COMPACTED SUBGRADE, SEE SPECS. COMPACTED CLASS 2 AGGREGATE BASE, SEE SPECS. P.I.P. CONCRETE PAVING, SEE SPECS. #4 REBAR 12" O.C. BOTH WAYS HOLD FINISH GRADE 1/2" BELOW PAVING EASE EXPOSED EDGES SCORE JOINT (SJ) EXPANSION JOINT (EJ) 5" 6" 3" CLR 3" CLR L808.1 2 L808.1 2
