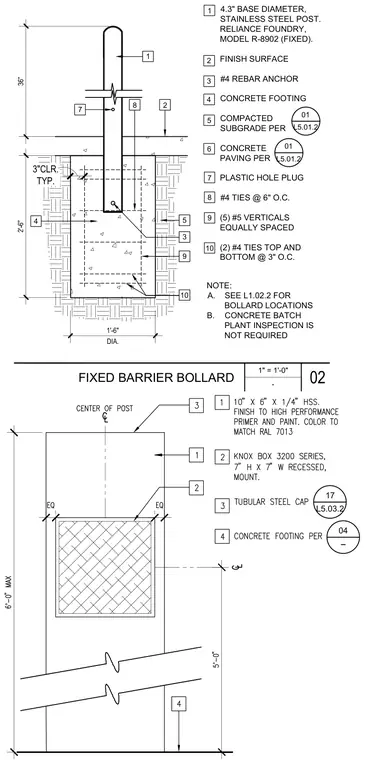

A fixed security barrier bollard is anchored into a cast-in-place concrete footing. The assembly features a stainless steel post with a 4.3 inch base diameter, anchored internally with rebar and embedded in a 1 foot 6 inch diameter concrete footing reinforced with number 5 verticals and number 4 ties at 6 inches on center. An alternative configuration utilizes a 10 inch by 6 inch by 1/4 inch hollow structural section steel post incorporating a recessed Knox box and a tubular steel cap. The concrete footing bears on a compacted subgrade beneath the finish surface and concrete paving.
02 FIXED BARRIER BOLLARD 1" = 1'-0" - 1'-6" DIA. 36" 1 2 3 4 5 NOTE: A. SEE L1.02.2 FOR BOLLARD LOCATIONS B. CONCRETE BATCH PLANT INSPECTION IS NOT REQUIRED 2 1 5 3 6 L5.01.2 01 7 7 2'-6" L5.01.2 01 4.3" BASE DIAMETER, STAINLESS STEEL POST. RELIANCE FOUNDRY, MODEL R-8902 (FIXED). FINISH SURFACE #4 REBAR ANCHOR CONCRETE FOOTING COMPACTED SUBGRADE PER CONCRETE PAVING PER PLASTIC HOLE PLUG #4 TIES @ 6" O.C. (5) #5 VERTICALS EQUALLY SPACED (2) #4 TIES TOP AND BOTTOM @ 3" O.C. 3"CLR. TYP. 8 9 9 8 10 10 4 17 L5.03.2 04
