Landscape · L-BR94N

Root Watering System

Elements

About this detail

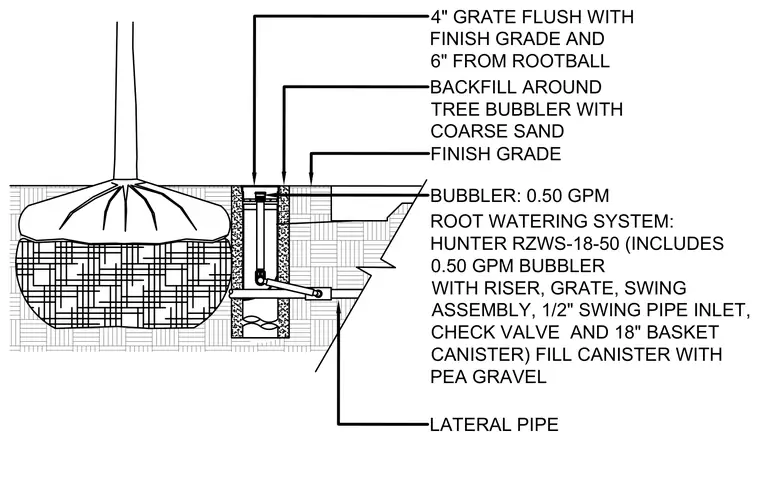

A root watering system is installed with the four-inch grate placed flush with the finish grade and positioned six inches from the tree rootball. The assembly utilizes a Hunter RZWS-18-50 unit that includes an eighteen-inch basket canister, a zero point five zero gallons per minute bubbler with a riser, a swing assembly, a check valve, and a one-half-inch swing pipe inlet connected to a lateral pipe. The canister is filled with pea gravel, while coarse sand is used to backfill around the tree bubbler.
