Drip Tubing Subgrade Installation

About this detail

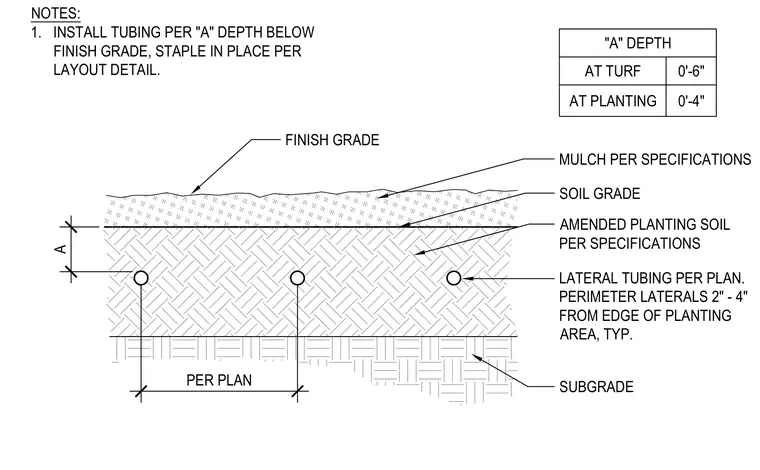

Lateral drip tubing is installed at a specified depth below the finish grade, secured in place with staples per the layout detail. Perimeter laterals are positioned two to four inches from the edge of the planting area. The "A" depth is six inches at turf areas and four inches at planting beds. The soil profile consists of a subgrade layer, amended planting soil, soil grade, and a top layer of mulch per specifications.
