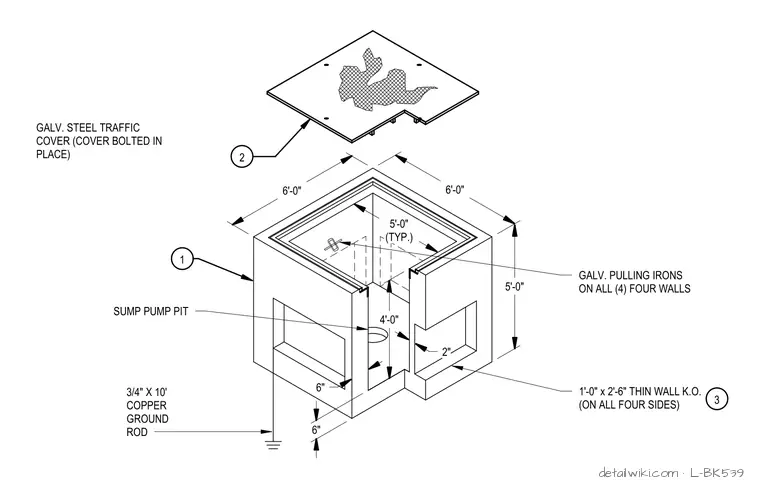

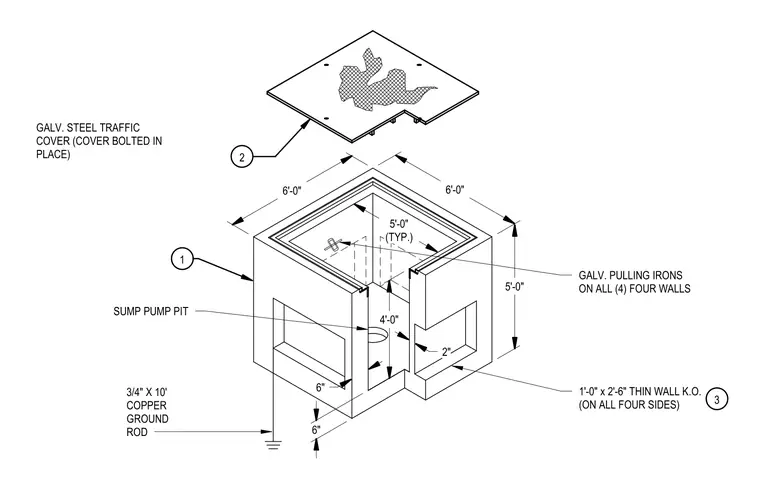

This precast concrete handhole structure measures six feet by six feet with a five foot depth and is topped with a galvanized steel traffic cover bolted securely in place. Galvanized pulling irons are embedded on all four interior walls to assist with cable pulling. The concrete walls feature one foot by two foot six inch thin wall knockouts on all four sides along with a central sump pump pit. A three-quarter inch by ten foot copper ground rod connects to the structure for electrical grounding.
6'-0" 6'-0" 5'-0" 5'-0" (TYP.) 4'-0" 2" 6" 6" GALV. PULLING IRONS ON ALL (4) FOUR WALLS SUMP PUMP PIT 1'-0" x 2'-6" THIN WALL K.O. (ON ALL FOUR SIDES) GALV. STEEL TRAFFIC COVER (COVER BOLTED IN PLACE) 3/4" X 10' COPPER GROUND ROD 1 2 3
