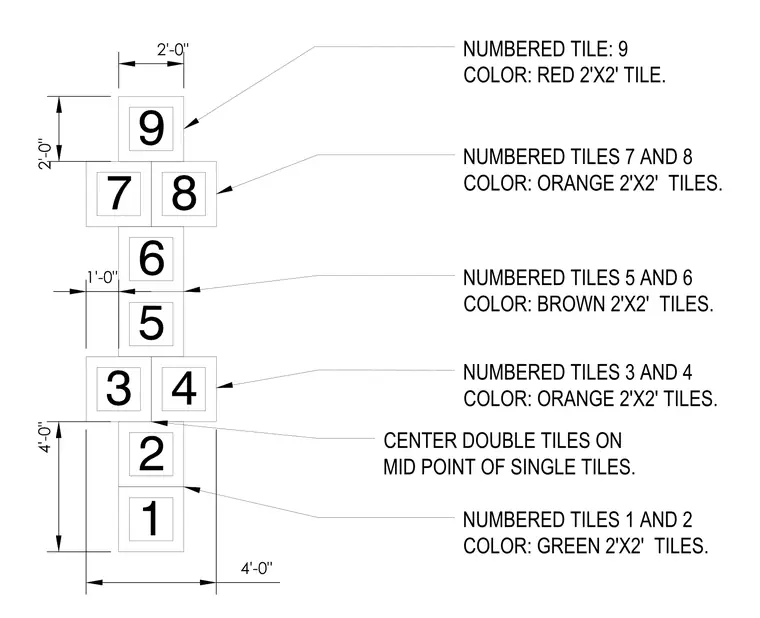

This assembly consists of two-foot by two-foot rubber tiles arranged in a numbered layout with specific color coding and dimensional alignment requirements. Green tiles numbered one and two form the base, centered on the midpoint of single tiles with a four-foot overall length. Orange tiles numbered three and four, along with brown tiles numbered five and six, stack vertically in single and double configurations. Additional orange tiles numbered seven and eight lead to a single red tile numbered nine at the top. The layout requires double tiles to be centered on the midpoint of single tiles with a two-foot width and spacing.
NUMBERED TILES 3 AND 4 COLOR: ORANGE 2'X2' TILES. NUMBERED TILES 1 AND 2 COLOR: GREEN 2'X2' TILES. NUMBERED TILES 5 AND 6 COLOR: BROWN 2'X2' TILES. NUMBERED TILE: 9 COLOR: RED 2'X2' TILE. NUMBERED TILES 7 AND 8 COLOR: ORANGE 2'X2' TILES. 2'-0" 1'-0" 4'-0" CENTER DOUBLE TILES ON MID POINT OF SINGLE TILES.
