This assembly consists of a cast brass valve body with 3/8-inch iron pipe size female inlets for both hot and cold water supplies. Forged brass four-arm handles operate the valves, complete with colored plastic index disks and a removable aerator secured by a 3/8-inch iron pipe size coupling. An industrial water sign reading caution non-potable water do not drink is mounted typically on or near the fixture. Overall dimensions show a height of 1 foot 2 inches, a 6-inch spout reach, and 7-inch handle spacing.

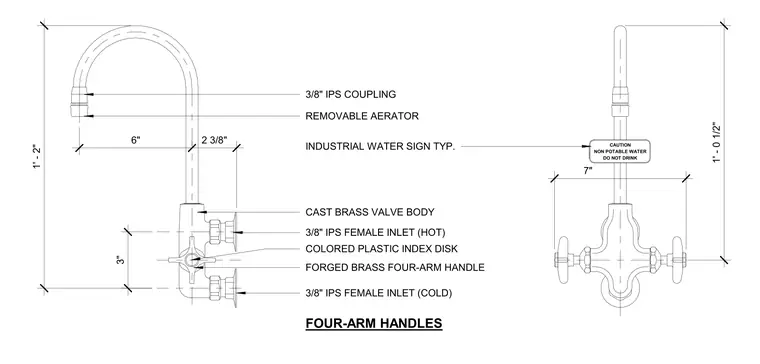

3/8" IPS COUPLING 3/8" IPS FEMALE INLET (COLD) CAST BRASS VALVE BODY 3/8" IPS FEMALE INLET (HOT) COLORED PLASTIC INDEX DISK FORGED BRASS FOUR-ARM HANDLE REMOVABLE AERATOR 7" FOUR-ARM HANDLES 2 3/8" 6" 3" 1' - 2" 1' - 0 1/2" DO NOT DRINK CAUTION NON POTABLE WATER INDUSTRIAL WATER SIGN TYP.
