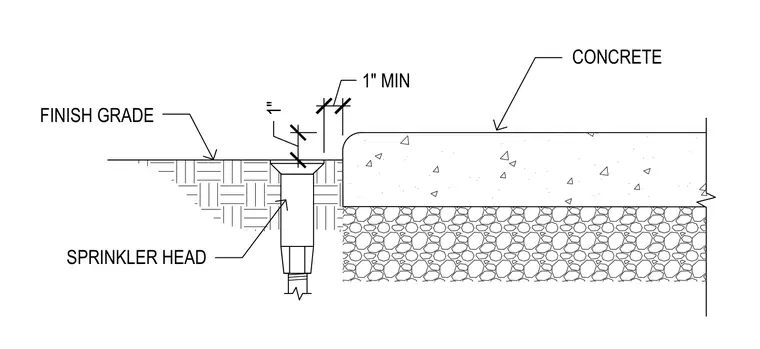

A sprinkler head is positioned adjacent to a concrete slab with a required minimum one-inch clearance from the finish grade. The finish grade aligns with the top of the sprinkler head, maintaining a one-inch minimum vertical and horizontal dimensional relationship to the concrete edge. The concrete slab rests on a compacted base layer.
