The subgrade is compacted to ninety-five percent dry density and lined with geotextile fabric to support the drainage system. A perforated flat pipe is placed directly on the fabric-lined subgrade with a snap cap fitted on the end, pitched to slope according to the civil plans. Permeable field aggregate fills the trench and base layer up to a variable depth specified on the plans, capped by synthetic turf. The perforated pipe layout and sizing are determined per the site drainage plan.

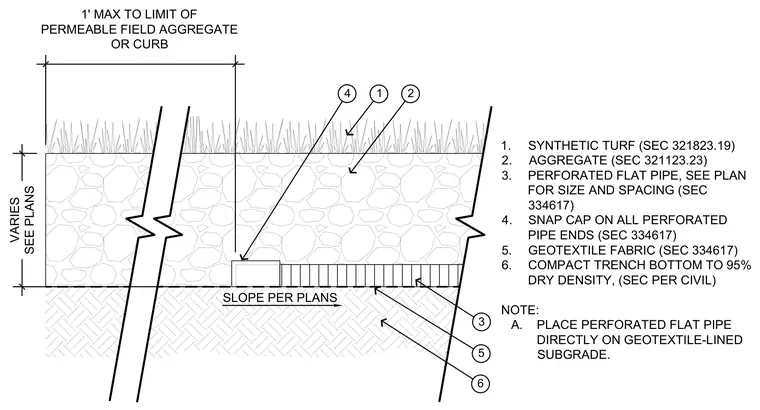

1. SYNTHETIC TURF (SEC 321823.19) 2. AGGREGATE (SEC 321123.23) 3. PERFORATED FLAT PIPE, SEE PLAN FOR SIZE AND SPACING (SEC 334617) 4. SNAP CAP ON ALL PERFORATED PIPE ENDS (SEC 334617) 5. GEOTEXTILE FABRIC (SEC 334617) 6. COMPACT TRENCH BOTTOM TO 95% DRY DENSITY, (SEC PER CIVIL) NOTE: A. PLACE PERFORATED FLAT PIPE DIRECTLY ON GEOTEXTILE-LINED SUBGRADE. 1' MAX TO LIMIT OF PERMEABLE FIELD AGGREGATE OR CURB VARIES SEE PLANS 1 3 6 5 2 4 SLOPE PER PLANS
