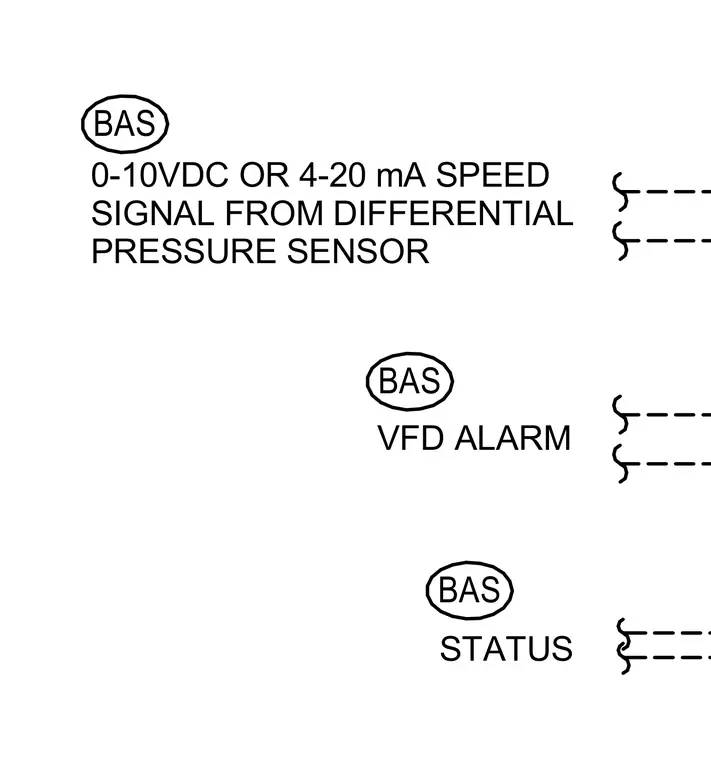

Building automation system integration requires a zero to ten volt direct current or four to twenty milliamp speed signal from a differential pressure sensor. Variable frequency drive alarm and status points interface directly with the building automation system.
BAS BAS BAS 0-10VDC OR 4-20 mA SPEED SIGNAL FROM DIFFERENTIAL PRESSURE SENSOR VFD ALARM STATUS BAS INTEGRATION THROUGH
