Landscape · L-BEV3K

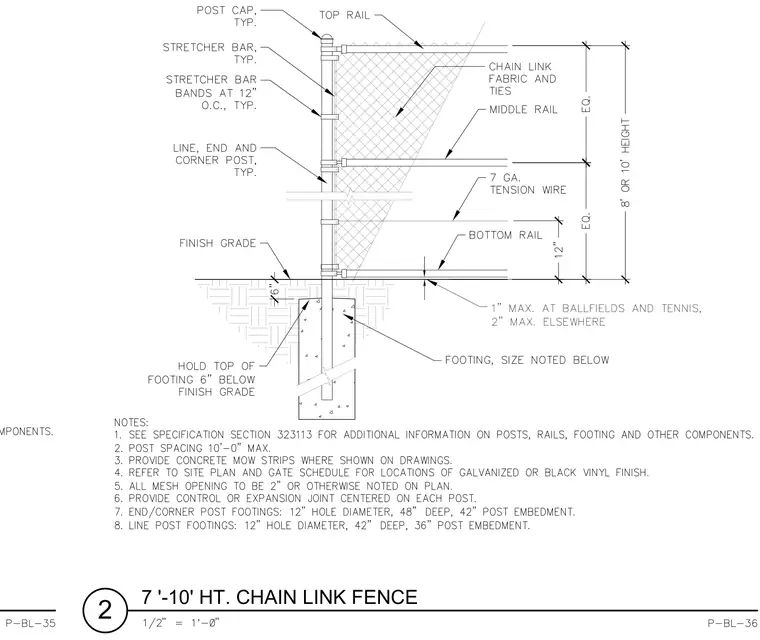

7'-10" Height Chain Link Fence

About this detail

A seven-foot-ten-inch height chain link fence anchored in a concrete footing embedded below finish grade. The assembly consists of line, end, and corner posts topped with post caps, supporting a top rail, middle rail, and bottom rail. Chain link fabric is secured to the framing using stretcher bars and stretcher bar bands spaced at twelve inches on center, supplemented by ties and a seven gauge tension wire near the bottom. The concrete footing is held six inches below finish grade, with dimensions specified for line and corner posts. Clearances at the bottom rail are maintained at one maximum inch at ballfields and tennis courts, and two maximum inches elsewhere.
