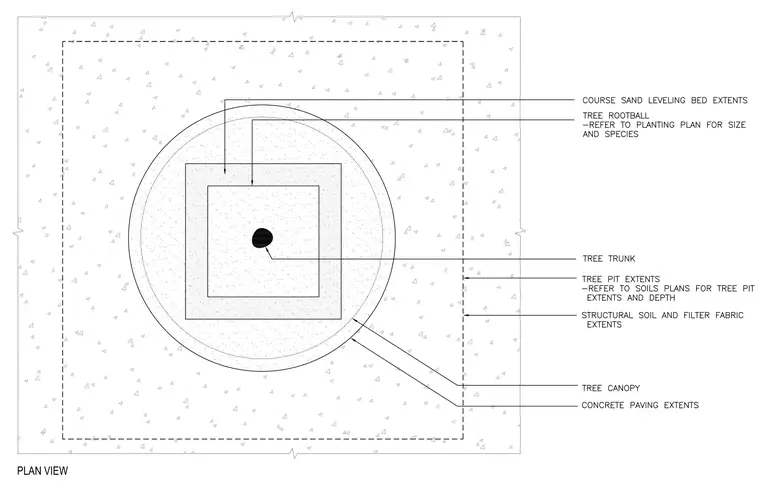

A tree rootball sits at the center surrounded by a square tree pit, structural soil with filter fabric extents, a course sand leveling bed, and concrete paving. The tree trunk emerges in the center below the tree canopy above. Tree pit extents and depth are referenced to the soils plans, while tree size and species are referenced to the planting plan.
